Kubernetes ft. Spring Boot (Series) - Creating the services #1

There is life after building the jar !

Brief

In this series we'll create a Kubernetes environment that will manage 2 simple Spring Boot applications that will communicate with each other through HTTP requests.

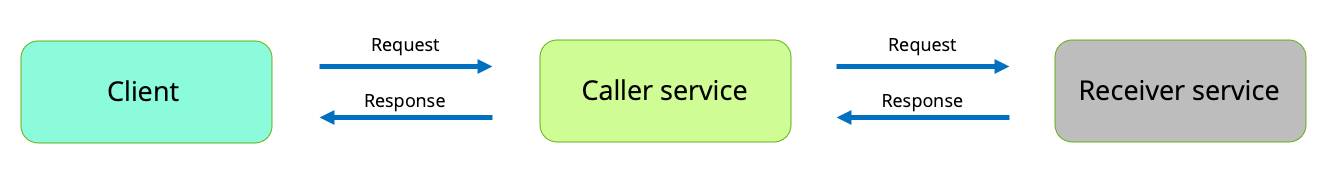

We'll have a calling application and a receiver application. A client will send a request to the calling application, this will then send a request to the receiver application and the response will be returned all the way to the client.

Implementation

For the sake of simplicity, the request from the client will be passed over to the receiver service without doing any business logic and will be returned as a response all the way back to the client.

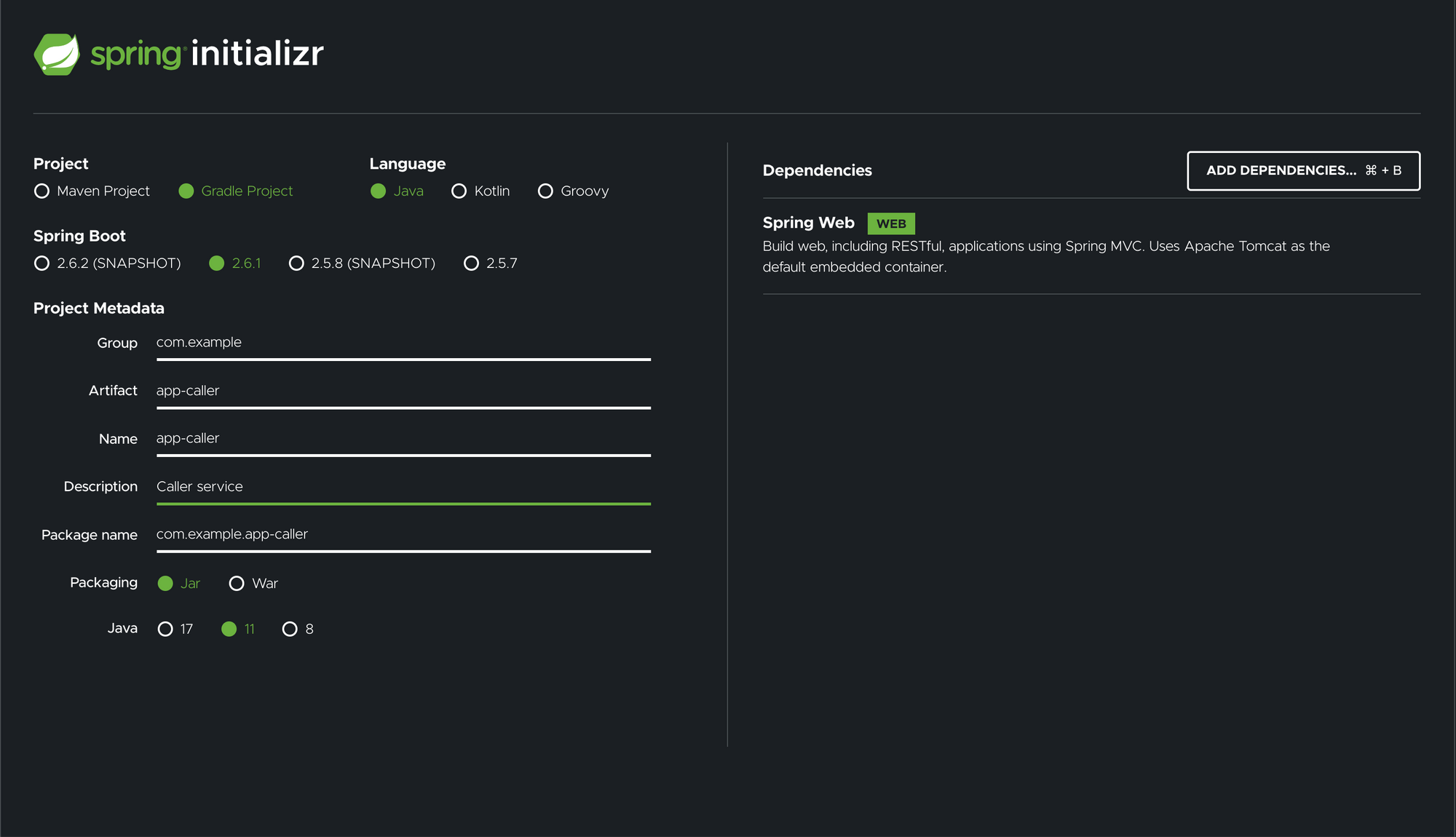

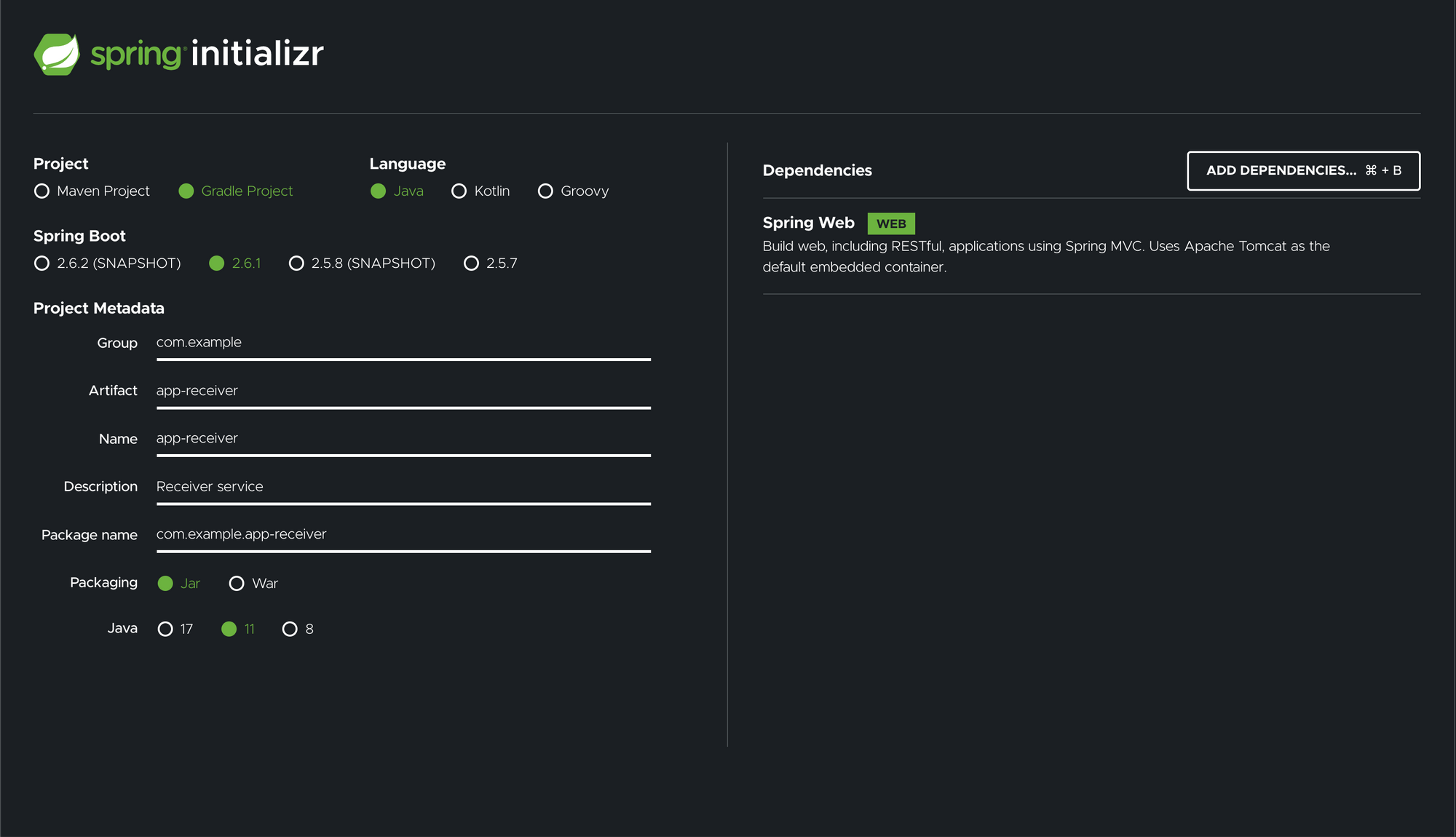

With the help of Spring Initializr creating the applications is quite straightforward. We'll create two Gradle projects with Java 11 and we'll only need the Spring Web dependency added to the projects.

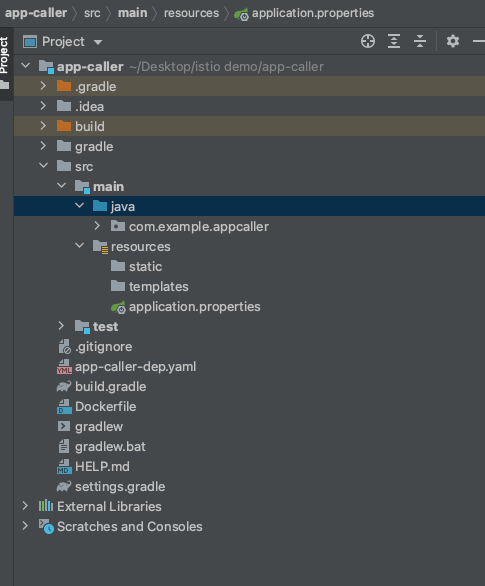

Caller application

• We'll configure the server to run on port 9991 and have as a context path /caller. So the client's requests will be sent to: http://localhost:9991/caller

server.port=9991
server.servlet.context-path=/caller

receiver.host=localhost
receiver.port=9992

• Defining the request body DTO

import lombok.Data;

@Data
public class FlowDto {
    private String data;
}

• It will also need a REST controller to be able to receive requests from the client.

@RestController
@RequiredArgsConstructor
public class Controller {
    private final RestClientService restClientService;

    @PostMapping("/start")
    public ResponseEntity<FlowDto> start(@RequestBody FlowDto flowDto) {
        FlowDto response = restClientService.sendStart(flowDto);
        return ResponseEntity.ok(response);
    }
}

• The service that will actually send the request to the receiver application.

@Service
public class RestClientService {
    private final RestTemplate restTemplate = new RestTemplate();

    @Value("${receiver.host}")
    String receiverHost;

    @Value("${receiver.port}")
    String receiverPort;


    public FlowDto sendStart(FlowDto flowDto) {
        return restTemplate.postForObject(receiverHost + ":" + receiverPort + "/receiver/start", flowDto, FlowDto.class);
    }
}

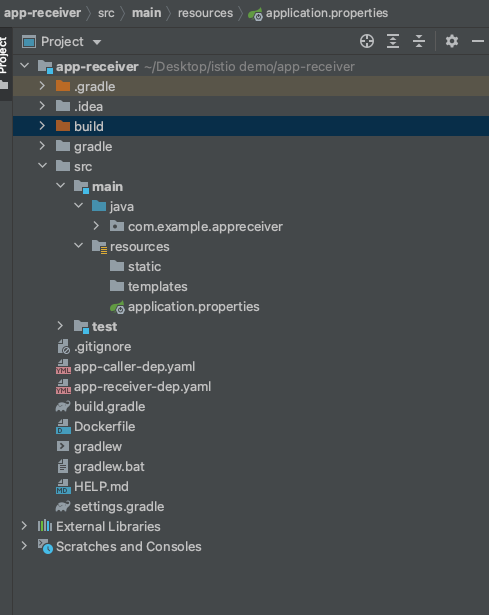

Receiver application

• Server configuration for port and context path

server.port=9992
server.servlet.context-path=/receiver

• Creating the endpoint on the receiver application

@RestController
public class Controller {
    @PostMapping("/start")
    public ResponseEntity<FlowDto> start(@RequestBody FlowDto flowDto) {
        return ResponseEntity.ok(flowDto);
    }
}

Test

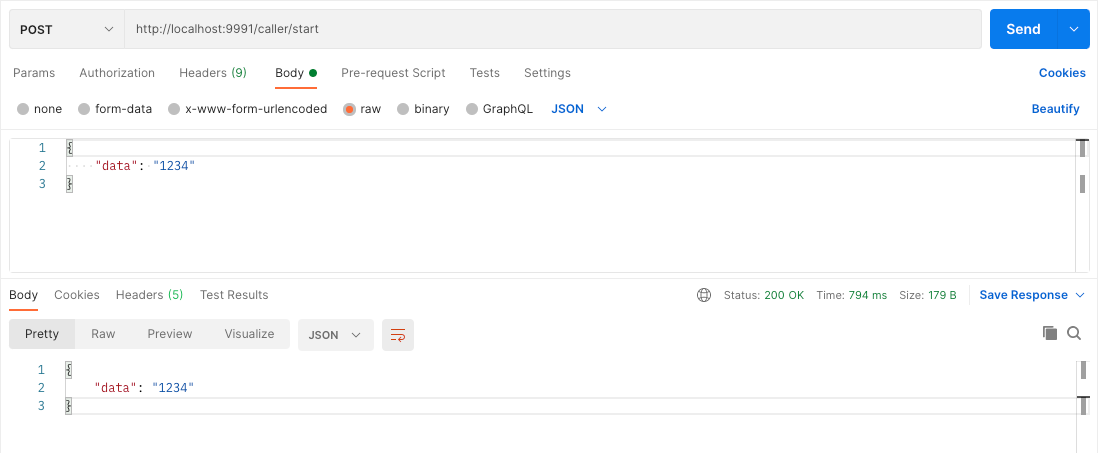

Simulate being the client by sending a request through Postman to the caller application.

To be continued

In the next post we'll deploy them to a K8s cluster to see how we can interact with our services in a separate environment rather than localhost.  See you there!
